Flat Rack container with oversized cargo being lifted by a crane.

Special Cargo Special Care

Many things fit in a container, but not everything. For oversized cargo or goods in particularly heavy volumes, Aliança also offers a suitable special container transport solution. Whether steel plates or complete subway cars, our experts plan the best container logistics for your cargo, advising you end to end, from departure to destination.

Our Strength – Your Advantage

Meet Aliança’s special containers

See the dimensions of each Aliança special cargo container and choose the one that best suits your business’s transport needs.

Aliança Open Top container.

Open Top 20′, 40′, 40′HC

This category stands out for its open top, which turns it into a platform that allows goods to be loaded and unloaded directly from above.

It is the ideal option for heavy machinery, metal structures, construction equipment and items taller than conventional containers.

To keep the cargo safe during the journey, these containers are fitted with a heavy-duty tarpaulin that protects the contents, making them an excellent choice for sectors such as construction, engineering, mining and heavy industry.

Open Top container specifications
Specification 20′ aluminum 20′ steel 40′ aluminum 40′HC steel
External dimensions L × W × H (ft) 20′ 8′ 8′6″ 20′ 8′ 8′6″ 40′ 8′ 8′6″ 40′ 8′ 9′6″
Internal dimensions* L × W × H (mm) 5,919 2,340 2,286 5,893 2,346 2,353 12,043 2,338 2,272 12,029 2,348 2,359
Door opening* W × H (mm) 2,286 2,251 2,338 2,273 2,289 2,253 2,338 2,275
Roof opening* L × W (mm) 5,425 2,223 5,488 2,230 11,662 2,162 11,622 2,188
Max. gross weight* kg 24,000 30,480 30,480 32,500
Tare* kg 2,177 2,250 4,300 3,800
Max. payload* kg 21,823 28,230 26,180 28,700
Volume* m³ 32 32 64 66

L = length · W = width · H = height

*General description. For the dimensions of specific units, please contact your nearest Maersk agent. Dimensions vary according to the container series.

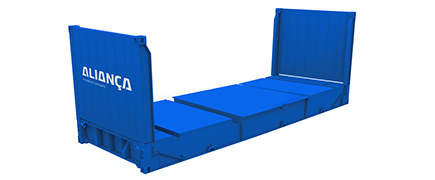

Aliança Flat Rack container.

Flat Rack 20′ and 40′

For heavy or exceptionally large goods, Flat Rack containers work as modular platforms that adapt to the most different types of goods, from tractors to boats, from railcars to boilers. Whatever your needs, Flat Racks can be adapted to them.

Flat Rack container specifications, all made of steel
Specification 20′ fixed ends 20′ foldable 40′ fixed ends 40′HC open end 40′HC foldable
External dimensions L × W × H (ft) 20′ 8′ 8′6″ 20′ 8′ 8′6″ 40′ 8′ 8′6″ 40′ 8′ 9′6″ 40′ 8′ 9′6″
Internal dimensions* L × W × H (mm) 5,935 2,398 2,327 5,966 2,418 2,286 12,080 2,438 2,103 12,192 2,230 1,986 12,178 2,365 1,943
Length between end walls* mm 5,935 5,850 12,080 11,900 12,058
Length between corner posts* mm 5,693 5,422 11,796 11,710 11,662
Max. width* mm 2,106 2,058 2,114 2,178 2,224
Max. gross weight* kg 24,000 30,480 30,480 45,000 45,000
Tare* kg 2,560 2,970 5,480 4,500 5,200
Max. payload* kg 21,440 27,510 25,000 40,500 39,800

L = length · W = width · H = height

All Flat Rack models are made of steel. *General description. For the dimensions of specific units, please contact your nearest Maersk agent. Dimensions vary according to the container series.

If your needs are even bigger, get in touch and talk to our Special Cargo team.

Talk to our Special Cargo team

Find out how Aliança can optimize your supply chain.

Aliança combines technical knowledge, dedication and experience to help your company define the best integrated logistics solutions.

Contact us and find out how your company can benefit from our transport solutions.

Get in touch with a specialist
